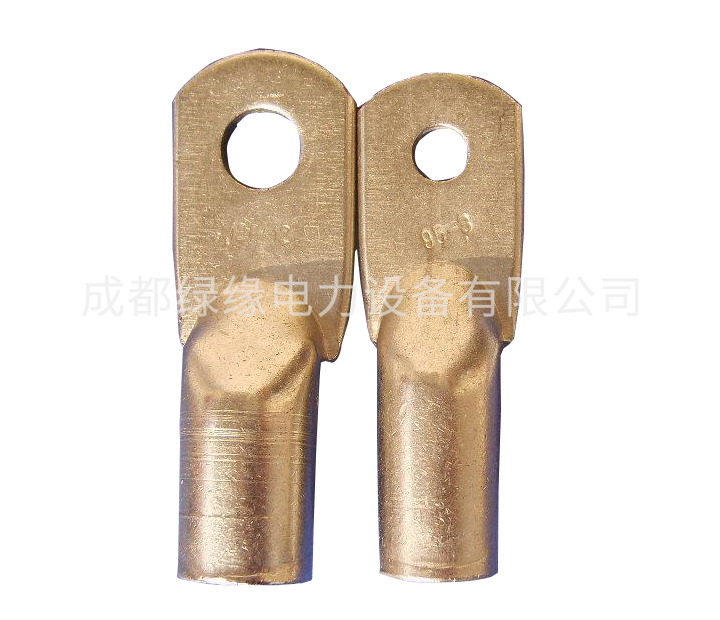

短壓銅鼻
一、產品介紹
JG短壓銅鼻適用于配電裝置中電線，電力電纜與電器設備的連接。采用（T2）銅管料壓制，表面鍍錫。
二、規格材質
紫銅管 ， 表面處理：紫銅本色或紫銅鍍錫。
三、主要適用范圍
家用電器,電氣業，機械設備廠,船廠，配電柜配電箱等 產品外觀規格良好，導電性能好,安全. JG銅鍍錫接線端子就是在原來銅接線端子的基礎上,在表層鍍上一層"錫",增強銅端子的導電能力。
短壓銅鼻型號參數：
| 型號 | 尺寸 mm | ||||||
| D | d | L1 | B | φ | t | L | |
| JG10-6 | 8.0 | 5.4 | 18.0 | 12.0 | 6.5 | 2.5 | 38.0 |
| JG10-8 | 12.0 | 8.5 | 2.5 | 38.0 | |||
| JG10-10 | 14.0 | 10.5 | 1.9 | 40.0 | |||
| JG16-6 | 9.0 | 6.0 | 18.0 | 13.0 | 6.5 | 2.9 | 40.0 |
| JG16-8 | 13.0 | 8.5 | 2.9 | 40.0 | |||
| JG16-10 | 15.0 | 10.5 | 2.7 | 40.0 | |||
| JG16-12 | 17.0 | 13.0 | 2.6 | 45.0 | |||
| JG25-6 | 10.0 | 7.0 | 19.0 | 14.0 | 6.5 | 2.9 | 45.0 |
| JG25-8 | 14.0 | 8.5 | 2.9 | 45.0 | |||
| JG25-10 | 15.0 | 10.5 | 2.7 | 45.0 | |||
| JG25-12 | 17.0 | 13.0 | 2.4 | 47.0 | |||
| JG35-6 | 11.0 | 8.0 | 22.0 | 16.0 | 6.5 | 2.9 | 50.0 |
| JG35-8 | 16.0 | 8.5 | 2.9 | 50.0 | |||
| JG35-10 | 16.0 | 10.5 | 2.9 | 50.0 | |||
| JG35-12 | 19.0 | 13.0 | 2.6 | 54.0 | |||
| JG50-6 | 13.0 | 10.0 | 23.0 | 18.5 | 6.5 | 2.9 | 54.5 |
| JG50-8 | 18.5 | 8.5 | 2.9 | 54.5 | |||
| JG50-10 | 18.5 | 10.5 | 2.9 | 54.5 | |||
| JG50-12 | 19.0 | 13.0 | 2.9 | 54.5 | |||
| JG50-14 | 22.5 | 15.0 | 2.6 | 54.5 | |||
| JG50-16 | 22.5 | 17.0 | 2.6 | 54.5 | |||
| JG70-8 | 16.0 | 12.0 | 25.0 | 22.5 | 8.5 | 3.9 | 60.0 |
| JG70-10 | 22.5 | 10.5 | 3.9 | 60.0 | |||
| JG70-12 | 22.5 | 13.0 | 3.9 | 60.0 | |||
| JG70-14 | 22.5 | 15.0 | 3.9 | 60.0 | |||
| JG70-16 | 24.0 | 17.0 | 3.7 | 62.0 | |||
| JG95-8 | 17.0 | 13.4 | 26.0 | 24.0 | 8.5 | 3.5 | 66.0 |
| JG95-10 | 10.5 | 3.5 | 66.0 | ||||
| JG95-12 | 13.0 | 3.5 | 66.0 | ||||
| JG95-14 | 15.0 | 3.5 | 66.0 | ||||
| JG95-16 | 17.0 | 3.5 | 66.0 | ||||
| JG120-10 | 20.0 | 16.0 | 28.0 | 28.0 | 10.5 | 3.9 | 72.0 |
| JG120-12 | 13.0 | 3.9 | 72.0 | ||||
| JG120-14 | 15.0 | 3.9 | 72.0 | ||||
| JG120-16 | 17.0 | 3.9 | 72.0 | ||||
| JG150-10 | 22.0 | 17.0 | 34.0 | 31.0 | 10.5 | 4.9 | 80.0 |
| JG150-12 | 13.0 | 4.9 | 80.0 | ||||
| JG150-14 | 15.0 | 4.9 | 80.0 | ||||
| JG150-16 | 17.0 | 4.9 | 80.0 | ||||
